HAND RAILING

RAILEX® HANDRAILING

The GRATING WORLD RAILEX® handrailing system comprises 32mm handrail tube and stanchions of 38mm tube or 50mm x 50mm angle.

Tube connectors are available in 90 degree bends, 45 degree bends and as 90 degree and 45 degree closures (to connect end runs of upper and lower handrails).

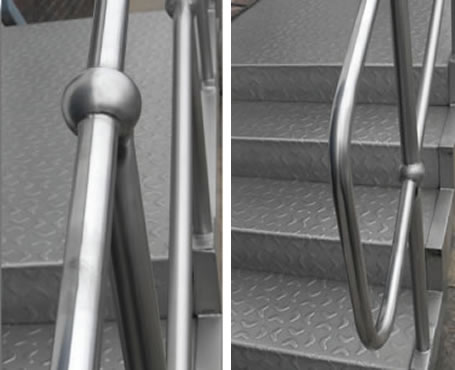

Ball stanchions are floor (top) mount at 90 degrees (B-TM90) and 45 degrees (B-TM45), side-mount (B-SM90) and goose-neck mount (B-GSM90).

Ball stanchions may be ordered with handrail angles at up to 45 degrees.

Angle stanchions are available in top-mounted and side-mounted versions.

The Railex System

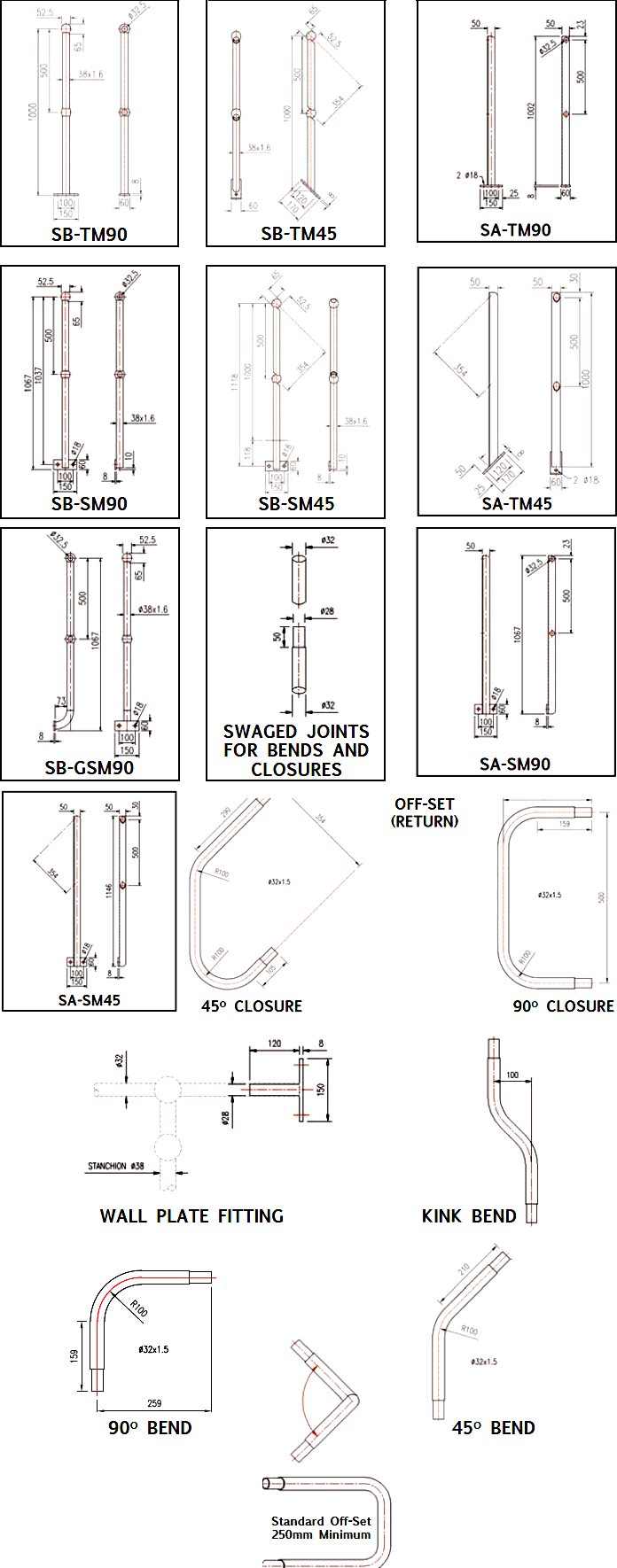

Railex Diagrams
