STAINLESS STEEL REPAIR CLAMPS

Fast-action Cascade™ repair clamps eliminate the need for costly pipe replacement and repairs. Simply open the clamp, wrap it around the leak, engage locking washer plate and tighten.

All gaskets fitted to Cascade's repair clamps are custom-sized to fit the specific ranges of pipe diameters, eliminating the need for joining gaskets.

Full size range

Fast / Half Clamps (Code CFC)

CFC Range of repair clampsUsed for repairing pin-hole breaks in smaller diameter pipes, (up to 2" in diameter) they provide a quick, easy and cost-effective solution for this type of break.

Cascade fast/half clamps are available in sizes to suit galvanised pipe from 1/2" through to 2".

Installation
Simply unhitch the bolt-head, spread lugs open, snap into position over the leak and tighten - your leak-repair is complete.

Material Specifications

  • Clamp band: stainless steel
  • Lug sets: ductile iron, yellow, dichromate coating
  • Carbon bolts, nuts and washers - zinc yellow plated
  • Gasket - natural rubber with gridded design for maximum sealing

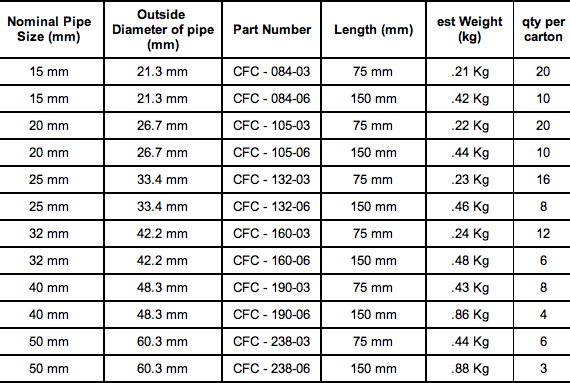

Fast / Half Clamps CFC Range
Standard lengths always in stock are 75mm and 150mm.
Other sizes available on request.

Pipe Repair Clamps CFC range



Full Circle Clamps Junior Couplings CFW Range

Cascade Full cicle clampsCascade junior couplings provide a quick, easy and cost-effective solution for repairing larger breaks in smaller diameter pipes, by providing a full circumference seal around the pipe. Available in sizes to suit galvanised and copper pipe from 1/2" to 11/2".

Installation
Unhitch bolt-head, slide gasket out and wrap around leak. Spread lugs open, snap into position over the gasket, tighten- making sure that the armour plate's centering nipples are positioned between the clamp's ends -and your repair is complete.
Standard lengths always in stock are 75mm and 150mm.

General Specifications

  • Clamp Band - T304 or T316 Stainless Steel
  • Lugs - Ductile iron, allover dichromate
  • Carbon steel nuts, bolts and washers - zinc yellow plated
  • CFW gasket - Buna N with gridded design and vulcanised armour for maximum sealing effect

Pipe Repair Clamps CFC range



Request more info on this product

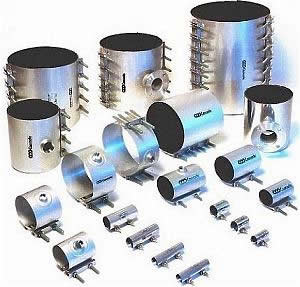

Repair Clamps
Comprehensive range of pipe repair clamps
