CENTRIFUGAL PUMPS

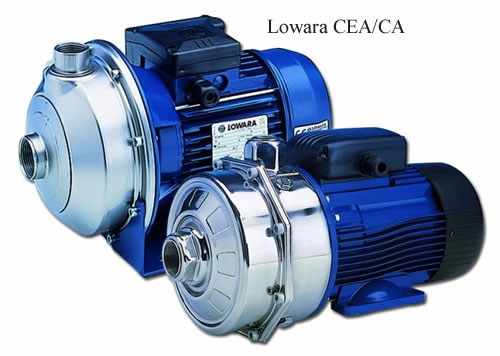

LOWARA CEA/CA
Stainless steel threaded centrifugal pumps

• Single Stage Pumps - CEA, CA
• Single-impeller (CEA) and dual-impeller (CA) models available.
• Available on request "V" version with FPM seals for temperature up to 110°C and "N" version completely made of AISI 316 stainless steel.
• Delivery: up to 31 m³/h
• Head: up to 62 m
• Power supply: both single and three-phase 50 and 60 Hz
• Power: from 0.37 kW up to 3 kW
• Maximum operating pressure: 8 bar
• Temperature of pumped liquid: from -10 °C to 110 °C

LOWARA CO
Threaded centrifugal pumps with open impeller

These pumps combine the advantages of an open impeller with those of the AISI 316 stainless steel construction, which is particularly suited for handling moderately aggressive liquids with suspended solids.

• Delivery: up to 54 m³/h

• Head: up to 24 m
• Power supply: both single and three-phase 50 and 60 Hz

• Power: from 0.37 kW up to 3 kW

• Maximum operating pressure: 8 bar

• Temperature of pumped liquid: from -10 °C to 120 °C

• Free passage: up to 20 mm

LOWARA SH
Centrifugal pumps manufactured in AISI 316 stainless steel in compliance with EN 733 - DIN 24255

Pumps designed to handle hot, cold and moderately aggressive liquids. Available models: SHE Close-coupled with special motor shaft extension. SHS With stub shaft and standard motor. SHF With flexible coupling, adapter, base and standard motor in compliance with EN 733 - DIN 24255.

• Delivery: up to 240 m³/h
• Head: up to 110 m

• Power supply: both single and three-phase 50 and 60 Hz

• Power: from 0.25 kW up to 75 kW

• Maximum operating pressure: 12 bar

• Temperature of pumped liquid: from -10 °C to 120 °C
