Medium U-Bolts

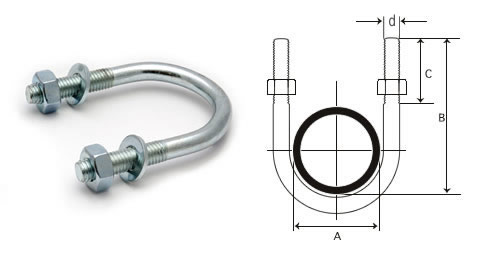

Medium Series U-Bolts Stainless Steel 304/316
NB Inch	NB mm	A	d	B	C
1/2	15	22	8	32	25
3/4	20	27	8	35	25
1	25	34	8	38	25
1 1/4	32	43	8	45	25
1 1/2	40	49	10	51	30
2	50	60	10	51	30
2 1/2	65	77	10	64	30
3	80	89	10	68	30
4	100	114	12	89	35
5	125	141	12	102	35
6	150	168	16	120	40
8	200	219	16	145	40
10	250	273	16	170	40
12	300	324	16	185	40
14	350	356	16	220	40
16	400	406	16	245	40
18	450	457	16	270	40
20	500	508	20	310	50
24	600	610	20	380	50
30	750	762	20	442	50
