FLOOR DRAINS

Full Flow Floor Drain Traps

Stainless steel Drainage Products and Grease Traps for the catering, food processing, chemicals and pharmaceutical industries, with an extensive product range.

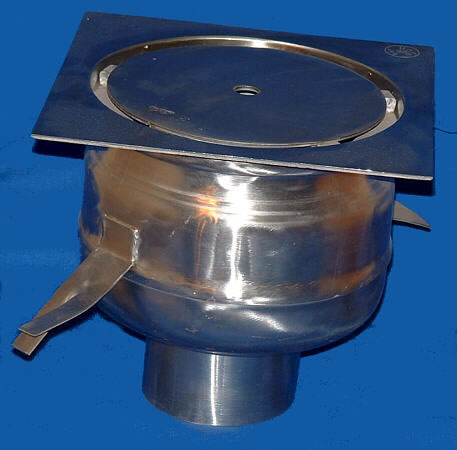

RO 200 V (H) NW 100/RO 280 V (H) NW100

These unique Full Flow Floor Traps have the following features:

• Manufactured from Stainless Steel to ensure acid corrosion and stain resistance;
• A double water seal to ensure odour-free operation;
• Smooth surfaces for easy cleaning, minimum dirt collection and high flow rates;
• A large sludge box which retains all the coarse slurry;
• Easy to dismantle for cleaning;
• The discharge pipe is fully accessible once the drain has been dismantled;
• Flow Rate:
  • RO 200 V (H) NW 100: 3 l/sec
  • RO 280V(H) NW100: 4.5 l/sec
• Load capacity: 1.500 kg
• Material Stainless Steel 304
• Position of outlet:
  *V = Vertical
  *H = Horizontal with mitred bend
• Typical uses: Restaurants, Steakhouses, Kitchens, Dining Halls, Horse Stables, Pigsties, Nursing homes, etc.
