SEAT VALVES

Select brand: Kieselmann Seat Valves Inoxpa Seat Valves

Kieselmann Single Seat Valves

KIESELMANN single seat valves are reliable and have long maintenance cycles with the utilisation of a sealing material which can be applied universally or with service. After having opened the clamp, the valve insert together with the valve disc can be removed for maintenance. The spherical shaped housing with a surface quality of < 0.8 UM guarantees a hygienic process. The modular system provides for retrofitting to pneumatic actuation and bus control.

Features

  • Dead space-free housing in hygienic design
  • Safe hygiene due to closed lantern with leakage outlets
  • 3 actuators adapted to performance
  • Maintenance-free universal actuator with 5 years
  • Warranty
  • Modular system
Single Seat valve versions
Single seat valve housing versions

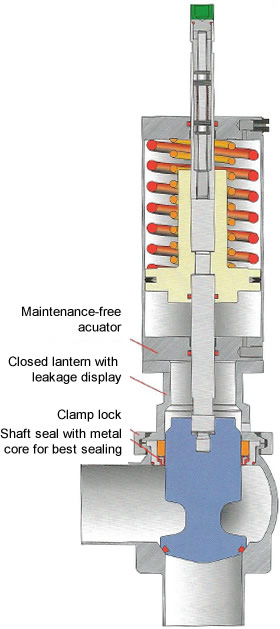

Single Seat valve
Kieselmann single angle seat valve
Kieselmann 5009 inclined manual single angle seat valve

Kieselmann Double seat valves

KIESELMANN double seat valves are used for the mixture-safe separation of incompatible products in automatic process plants. The closed valve avoids mixture due to two independent valve disks with depressurized leakage discharge. In case of a damaged sealing, the process medium escapes from the valve without pressure. The leakage space can be cleaned by lifting the upper valve disk or lowering the lower valve disk respectively.

  • Pressure shock resistant
  • Leakage-free opening
  • Safe product separation
  • Optimal cleaning functions
  • High sealing service life
  • Versions:
    - Double seat valve
    - Double seat reversing valve
    - Piggable double seat valve
    - Tank outlet valve
Double Seat valve versions


Would you like a quote/info on Kieselmann Seat Valves? Please submit our product info request form
