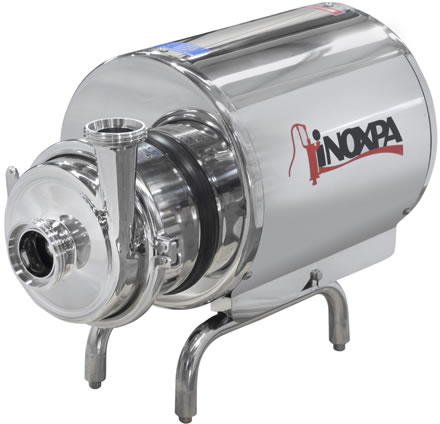

INOXPA HYGINOX Centrifugal Pump
The sanitary and cost-efficient design of the Hyginox range of centrifugal pumps makes it particularly suitable as main process pump in the dairy, beverage, pharmaceutical and cosmetic industries.
Hyginox SE is a range of close-coupled centrifugal pumps with sanitary design, compact and efficient. It is made of a cold-formed stainless steel casing, stainless steel open impeller (investment casting), mechanical seal, pump cover, lantern and shaft, connected to the motor shaft by mechanical compression.
The motor complies with the IEC standards, it is protected with a stainless steel shroud and provided with the height adjustable hygienic designed legs.
Design and features
Triphasic induction motor with B34 flange (B35 for motor frame 132 and above), in compliance with the IEC standards, 2 poles = 3000/3600 rpm, IE-2 efficiency class, IP 55 protection and F-class insulation.
3 phases, 50 Hz, 220-240 V Δ / 380-420 V Υ, ≤ 4 kW
3 phases, 50 Hz 380-420 V Δ / 660-690 V Υ, ≥ 5,5 kW
